Fire Extinguishers and Fire Blankets

Fire Extinguishers and Fire Blankets

Trust Fire Queen to provide expert advice on Portable Fire Extinguishers and Blankets along with a full range of fire safety products – With over 50 years experience supplying fire safety products, you can trust Fire Queen Limited to provide expert advice on your fire extinguisher needs and other quality fire safety products. As your complete service provider, Fire Queen Limited supply a comprehensive range of Fire Extinguishers and maintenance requirements.

Or as part of your Fire Risk Assessment Strategy. For further advice:

Please Contact

Customer Support Team

0800 731 2748

To arrange a free survey or discuss your requirements with a Technical Advisor.

There are 7 main Fire Extinguisher types – Carbon Dioxide, Foam, Powder, Specialist Powder, Water, Wet Chemical and Lithium battery.

You must have the correct Fire Extinguishers for your premises, or risk not meeting current regulations. Fire extinguishers are available in different types with each one having specific classes of fire on which they are suitable for.  Fire extinguishers meeting BS EN3 should have a red body (RAL 3000) and an agent specific colour band covering between 5-10% of the surface, relating to the extinguisher’s contents.

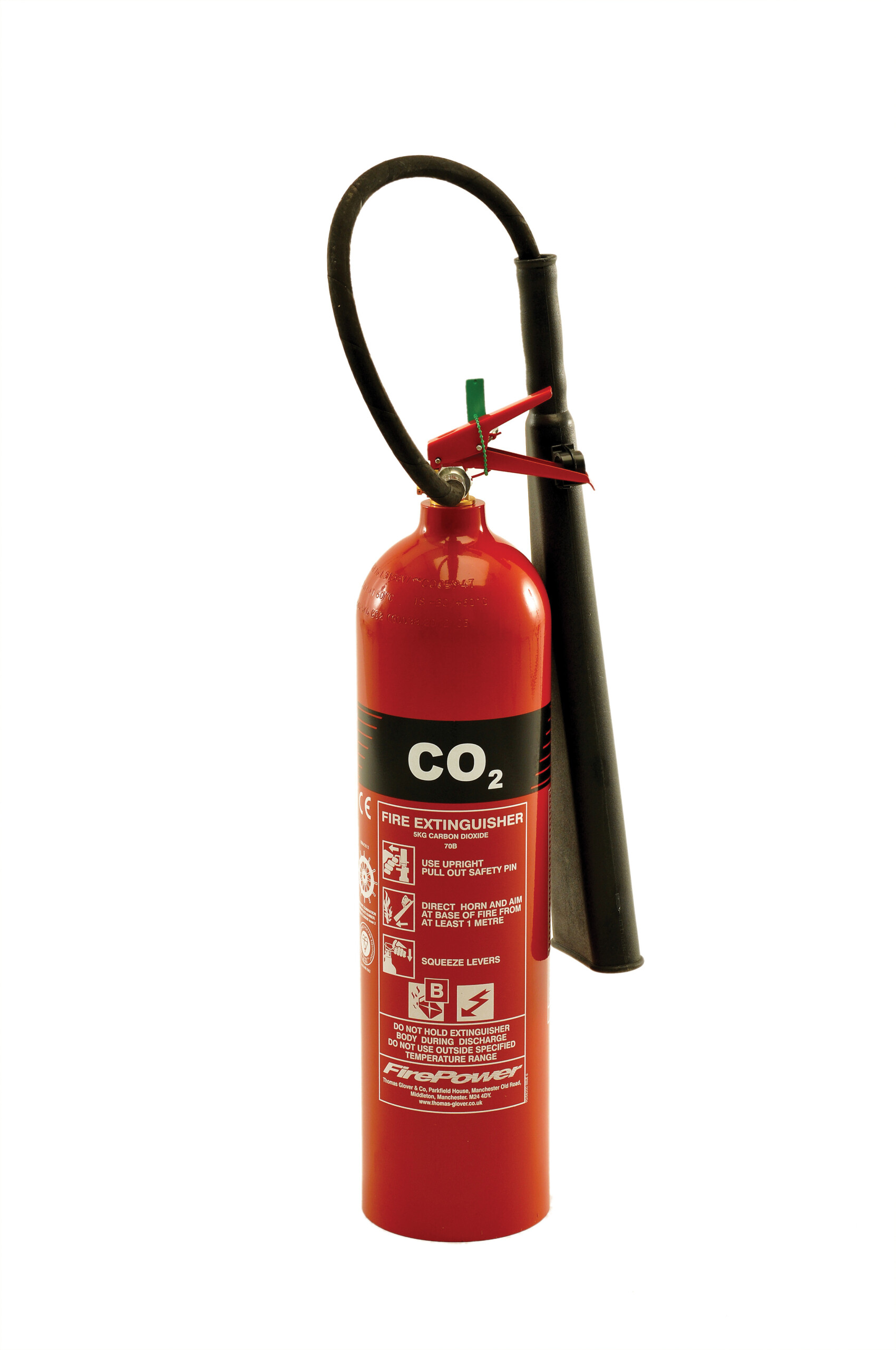

Carbon Dioxide

A carbon dioxide fire extinguisher is suitable for Class B and electrical fires; it works by displacing the oxygen in the air, thereby suffocating the fire and preventing it from spreading.  CO2 fire extinguishers can also be used on flammable liquids such as petrol and solvents.

Carbon Dioxide (Co2)

Carbon Dioxide (Co2) Fire Extinguisher

Carbon Dioxide is ideal for fires involving electrical equipment; it will also extinguish flammable liquids such as paraffin, petrol and oil.
These fire extinguishers are fully re-chargeable, serviceable and supplied with a wallmounting bracket and Identification Sign.

  • Squeeze grip operation
  • Corrosion resistant finish
  • Harmless to machinery and electronics
  • Kitemarked to BS EN3
Type 2 Kg
Co2
5 Kg
Co2
Capacity (kg) 2 5
Fire rating 34B 70B
Height (mm) 490 750
Cylinder diameter (mm) 117 152
Overall width (mm) 180 310
Filled weight (kg) 4.91 11.43
Range of throw (m) >4 >4
Duration of discharge (secs) 8 14
Working pressure (at 20°C) 56 bar 56 bar
Temperature range (°C) -20 to 60 -20 to 60

Customer Support Team

0800 731 2748

To arrange a free survey or discuss your requirements with a Technical Advisor.

CO2 fire extinguishers contain carbon dioxide which is a clean agent, leaving no residue.  Suitable for class B flammable liquid fires (petrol, oil, solvents), and recommended for use on live electrical equipment.

Our Carbon Dioxide Fire Extinguishers are fully approved and carry a 10-Year Warranty.

Foam Spray

Foam Spray (AFFF)

Similar in some ways to water, but much more versatile.
Used for solids such as paper, wood, plastic and also flammable liquids such as paraffin, petrol, oil etc.
Our Foam Fire Extinguishers are fully re-chargeable, serviceable and carry a 10-Year Warranty.

  • Spray nozzle
  • Squeeze grip operation
  • Corrosion resistant finish
  • Internal polyethylene lining
  • Protective plastic base (Excludes 2 ltr model).
Type 2 ltr 6 ltr 9 ltr
Capacity (ltr) 2 6 9
Fire rating 8A 55B 13A 144B 21A 183B
Height (mm) 395 565 600
Cylinder diameter (mm) 112 160 189
Overall width (mm) 150 290 300
Filled weight (kg) 3.81 10.09 14.21
Range of throw (m) >2 >4 >4
Duration of discharge (secs) 12 30 40
Working pressure (at 20°C) 15 bar 15 bar 15 bar
Temperature range (°C) 0 to 60 0 to 60 0 to 60

Customer Support Team

0800 731 2748

To arrange a free survey or discuss your requirements with a Technical Advisor.

Suitable for use on class A solid combustible fires and class B flammable liquid fires. Foam Spray Fire Extinguishers smother burning materials and help prevent re-ignition, by creating a blanket effect.  Please note, unless they are described specifically as Class F Fire Extinguishers, they should not be used on fires involving cooking oil.

Foam Spray

Foam is an effective smothering agent, used mainly for liquid fires.  It acts by flowing over the liquid fuel or oil surface, isolating the fire from the air; also helps prevent re-ignition.

Dry Powder

Dry Powder Fire Extinguishers (ABC) are suitable for fighting class A,B and C fires. ABC powder extinguishers have a very good fire fighting capacity, but the powder does not soak into materials and does not have a cooling effect on the fire.

Dry Powder

Dry Powder Fire Extinguisher

Often termed the ‘Multi-Purpose’ Fire Extinguisher, it can be used on solids such as paper, wood, plastic, and flammable liquids such as paraffin, petrol, oil, and also flammable gases, such as propane, butane, methane etc.
Our fire extinguishers are fully re-chargeable and carry a 10-Year Warranty.

  • Multi-purpose application
  • Squeeze grip operation
  • Corrosion resistant finish
  • Kitemarked to BS EN3
  • Protective plastic base. (Excludes 1 kg and 2 kg models)
Type 1 Kg ABC Powder 2 Kg ABC Powder 4 Kg ABC Powder
6 Kg ABC Powder
9 Kg ABC Powder
Capacity (kg) 1 2 4 6 9
Fire rating 8A 55B 13A 70B 21A 113B 34A 233B 43A 233B
Height (mm) 340 370 430 565 600
Cylinder diameter (mm) 80 112 160 160 189
Overall width (mm) 135 150 310 290 300
Filled weight (kg) 1.67 3.62 6.98 9.62 14.37
Range of throw (m) >2 >2 >4 >4 >4
Duration of discharge (secs) 9 10 12 15 15
Working pressure (at 20°C) 15 bar 15 bar 15 bar 15 bar 15 bar
Temperature range (°C) -30 to 60 -30 to 60 -30 to 60 -30 to 60 -30 to 60


Customer Support Team

0800 731 2748

To arrange a free survey or discuss your requirements with a Technical Advisor.

Powder extinguishers can also create a loss of visibility and may create breathing problems. They are not generally recommended for use inside buildings unless there is absolutely no alternative. Please call Fire Queen for more information or fill in our contact form

Powder extinguishers have a blue label.

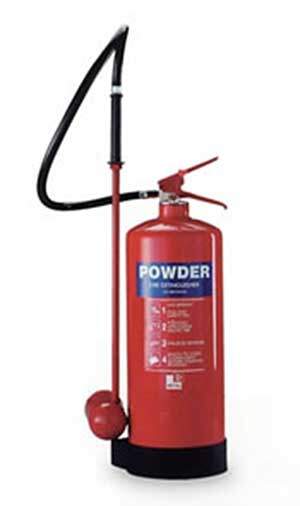

Specialist Dry Powder (Class D)

Specialist Powder

  • Unique lance applicator designed to allow the powder to fall evenly over the fire
  • Colour coded area for easy identification
  • Highly effective against metal fires, which include lithium, sodium, magnesium and aluminium, when in the form of powder or swarf
  • L2 contains powder suitable for fires involving lithium
  • M28 does not cover lithium fires
  • Unique hose swivel joint for easy directional control

A specialist fire extinguisher for use on Class D fires (metal fires).

These special dry powder fire extinguishers are designed specifically to fight combustible metal fires (Class D),  such as sodium, lithium, manganese and aluminium, when in the form of swarf or powder. They are equipped with a special, very low velocity applicator to ensure the fire fighting powder is applied efficiently and effectively to the burning metal and prevent burning swarf from spreading.

The L2 version contains powder formulated for extinguishing all metal fires including lithium.

Type Lithium L2 Powder (9 Kg) M28 Powder (9 Kg)
Capacity (kg) 9 9
Fire rating N/A N/A
Height (mm) 610 610
Cylinder diameter (mm) 189 189
Overall width (mm) 300 300
Filled weight (kg) 14.56 14.56
Range of throw (m) N/A N/A
Duration of discharge (secs) 30 30
Working pressure (at 20°C) 15 bar 15 bar
Temperature range (°C) -20 to 60 -20 to 60


Customer Support Team

0800 731 2748

To arrange a free survey or discuss your requirements with a Technical Advisor.

Environments such as laboratories and workshops where combustible metals is present, are most at risk from Class D fires. Specialist dry powder fire extinguishers are the only fire extinguishers which are recommended for use on Class D fires.

Fire Safety Engineer

Specialist Powder

These special dry powder extinguishers are designed specifically to fight combustible metal fires (Class D), such as sodium, lithium, manganese and aluminium, when in the form of swarf or powder.

Polished Chrome

Especially complimented when used with our Tubular Chrome fire extinguisher stands.

Polished Chrome

Polished Chrome and Polished Aluminium

Fire Extinguishers

We supply a range of unpainted fire extinguishers, finished in polished aluminium for the Co2 models and polished Chrome on all others. There are used to compliment fixtures and fittings in offices, restaurants, cinemas etc, where a prestige look is the priority.  Also useful in environments where chemicals or conditions may corrode steel cylinders.

Customer Support Team

0800 731 2748

To arrange a free survey or discuss your requirements with a Technical Advisor.

Water

Water Fire Extinguisher

Still probably the most widely used fire extinguisher, but limited to use on solids such as paper, wood, cloth etc. When these units reach the end of their serviceable life, they are often replaced with foam spray.

  • Squeeze grip operation
  • Corrosion resistant finish
  • Internal polyethylene lining
  • Protective plastic base
  • Kitemarked to BS EN3

Our Water Fire Extinguishers are fully re-chargeable and carry a 10-Year Warranty.

Type 9 ltr Water
Capacity (ltr) 9
Fire rating 21A
Height (mm) 600
Cylinder diameter (mm) 189
Overall width (mm) 300
Filled weight (kg) 14.18
Range of throw (m) >4
Duration of discharge (secs) 50
Working pressure (at 20°C) 15 bar
Temperature range (°C) 0 to 60


Customer Support Team

0800 731 2748

To arrange a free survey or discuss your requirements with a Technical Advisor.

Water

Water Fire Extinguishers are harmless to the environment and supplied with a Wallmounting Bracket and Identification Sign.

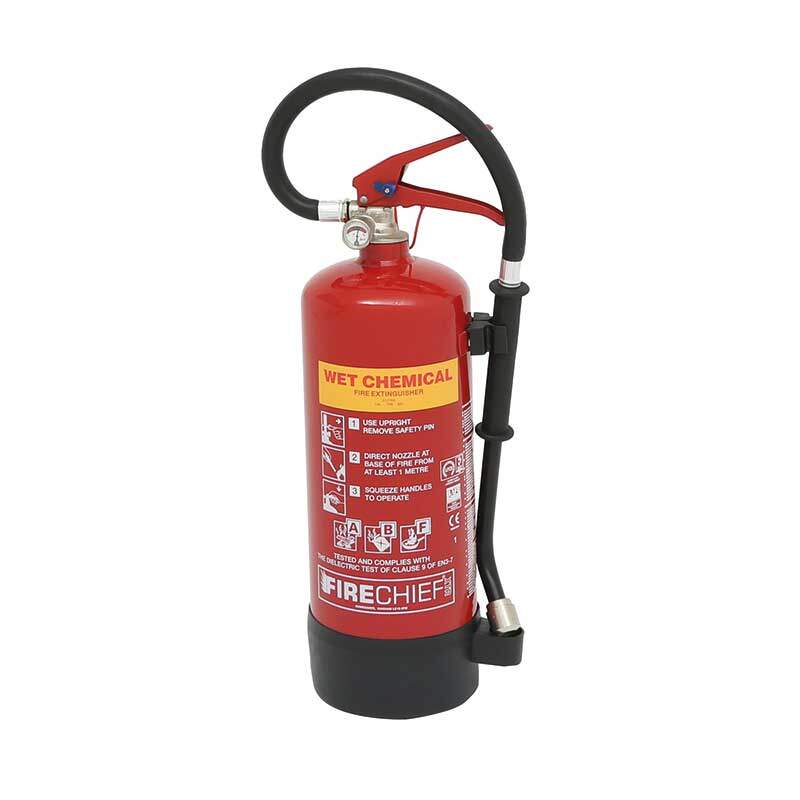

Wet Chemical

Wet Chemical is
a specialist fire extinguisher for use on cooking oil fires (class F) and also has a capability against solid fires (class A).

Wet Chemical Fire Extinguisher

Wet Chemical

These specialist wet chemical fire extinguishers are for Class F fires, involving cooking oils and fats, such as lard, olive oil, sunflower oil, maize oil and butter. They are extremely effective; the wet chemical rapidly knocks the flames out, cools the burning oil and chemically reacts to form a crust like lid, sealing the surface and preventing re-ignition.

  • Tested on 75 litres of cooking oils and kitemarked
  • User friendly, 6 litre size
  • Cylinder, lance and nozzle constructed from high quality, stainless steel
  • Unique hose swivel joint for easy directional control
  • Simple to use with controllable discharge
  • Also suitable for use on freely burning materials (Class ‘A’)
  • Fire rating – 13A 75F

Independent fire tests have established it is capable of extinguishing a fire in a 75 litre capacity deep fat fryer. They are easy to use, producing a gentle but highly effective spray. The gentle application helps prevent hot oil splashing onto the user. As an added benefit, they are also suitable for freely burning materials (Class A), such as wood paper and fabrics and are supplied with a wallmounting bracket.

Type Chemical Foam Spray (6 ltr)
Capacity (ltr) 6
Fire rating 13A 75F
Height (mm) 650
Cylinder diameter (mm) 180
Overall width (mm) 310
Filled weight (kg) 11.03
Range of throw (m) >2
Duration of discharge (secs) 48
Working pressure (at 20°C) 6.9 bar
Temperature range (°C) 0 to 60
wet chemical fire extinguisher

Wet chemical  is the only type of extinguisher which should be used on kitchen fires involving cooking fats and oils; they work by instigating a chemical reaction with the fats and oils. This reaction reduces the temperature and eliminates the heat causing the fire to die down and they have a special lance which allows application from a distance. If you require training in the use of this type of fire extinguisher, we can help.

Customer Support Team

0800 731 2748

To arrange a free survey or discuss your requirements with a Technical Advisor.

Lith-Ex Fire Extinguisher

Fire Extinguishers for Lithium Batteries

Fire Queen Limited can supply fire extinguishers for tackling Lithium-Ion battery fires. These high performance Lith-Ex fire extinguishers contain AVD (Aqueous Vermiculite Dispersion) compound – a revolutionary fire extinguishing agent – and are designed to target high risk fires of a limited size. They are suited to confined spaces such as homes, hotel rooms, vehicles, public transport, aviation, marine or leisure and dedicated processes where in all instances fires need to be suppressed in their infancy before developing into a fully established fire.

How it works:

When a lithium-ion cell goes into thermal runaway (increase in temperature) there are multiple possible sources of heat; for example:

  • Combustion – burning of electrolyte, packaging etc.
  • Ohmic – resistive heating caused by high current flow through short circuits
  • Thermodynamic – if the electrodes are no longer isolated, then the system will revert to its lowest energy state for that temperature, as long as the activation energy is met
  • Chemical – reaction of the electrode material with other components of the battery (electrolyte), thermal decomposition of the metal oxide electrode, especially cobalt oxide

In addition to this multitude of mechanisms, the design of the cell often prevents direct access of the extinguishing agent to the source of the fire. Thus, it is difficult to extinguish the fire, permanently cool all of the components to below their auto-ignition temperature and prevent re-ignition by delayed reaction processes.

If you require training for the use of this type of fire extinguisher, we can help as part of our comprehensive fire training program

Customer Support Team

0800 731 2748

To arrange a free survey or discuss your requirements with a Technical Advisor.

Lith-Ex Fire Extinguisher

A fire extinguisher specially developed to use on fires involving batteries.

Fire Blankets

Fire Queen Limited are members of the Fire Protection Association,  and accredited by BAFE, IFEDA & NICEIC.

Fire Blankets

Fire Blankets

Historically associated with combating chip pan fires, the fire fighting versatility of the fire blanket is becoming increasingly recognised by fire safety professionals. The applications for this simple and yet effective fire fighting aid are numerous.

  • Attractive and unobtrusive container
  • Unique front loading design for minimum removal time
  • Tamper evident feature for maximum security
  • Requires 40% less wall space than conventional containers
  • Moulded keyhole for increased strength when hanging
  • Kitemark certified

Standard sizes are 1m2, commonly in use for small kitchens, serveries and domestic applications and 1.8m2, for the larger kitchen, machinery and for use as a smothering cloth.

Customer Support Team on

0800 731 2748

To arrange a free survey or discuss your requirements with a Technical Advisor.

Fire blankets are primarily used on hot oil fires e.g. frying pans or small deep fat fryers. They can also be used on a person whose clothing has caught fire. They work by smothering the fire, stopping access to the oxygen and extinguishing it.
